How to integrate Artifactory to Jenkins and publish artifact to Artifactory



Integrate Artifactory with Jenkins - Upload Artifacts from Jenkins to Artifactory - How to Integrate Jenkins with Artifactory

You can install plug-in called Artifact plug-in to integrate Artifactory with Jenkins. Let us see how to integrate Jenkins with Artifactory and able to upload War/Ear/Jar/Exe/DLLs using Maven.

Pre-requistes:

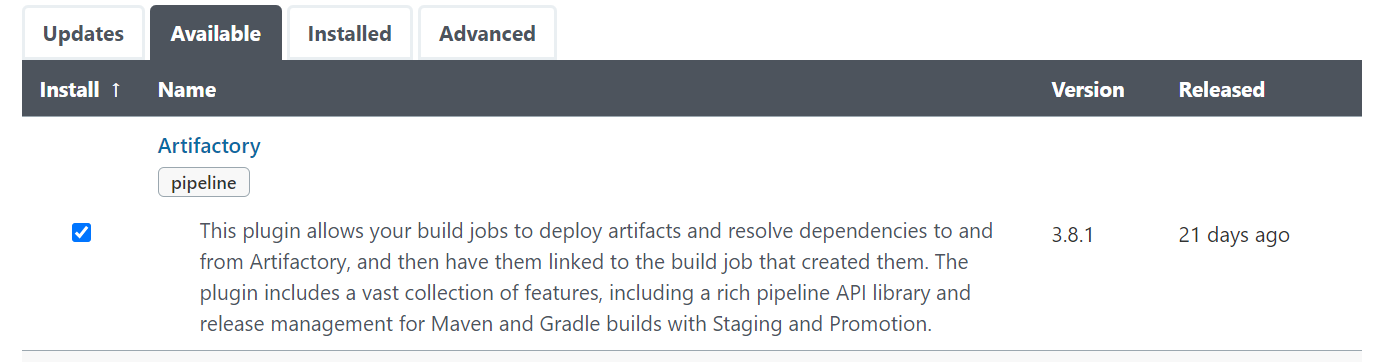

Install Artifactory plugin in Jenkins.

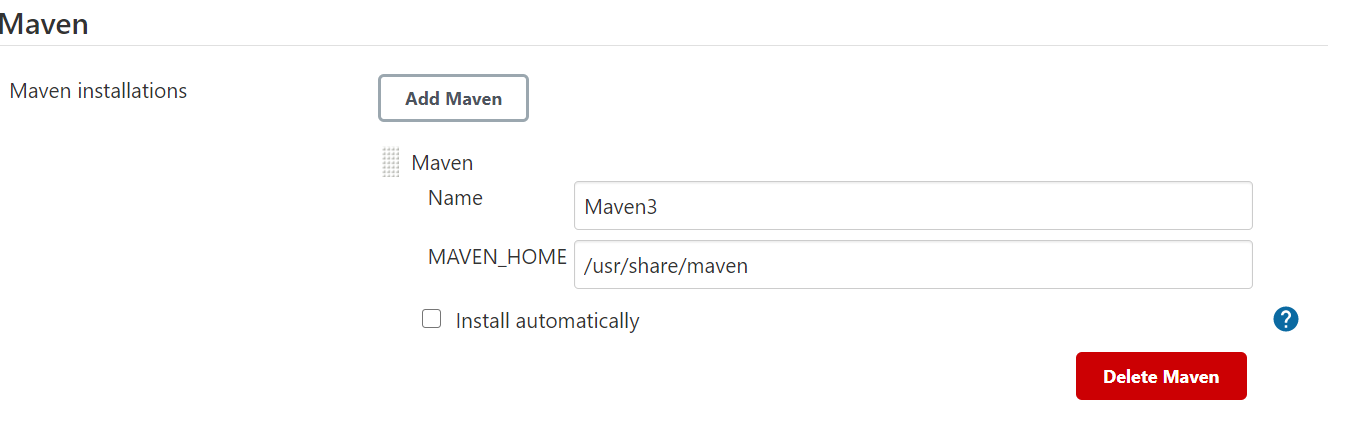

Make sure Maven 3 is also configured under Manage Jenkins--> Global Tool configuration
Enter Name as Maven3
/usr/share/maven as MAVEN_HOME

Configure Arifactory in Jenkins:
1. Go to Manage Jenkins, Click on configure system. Look for Artifactory section, click on Add Artifactory server

2. Enter Artifactory url like given below:
some name for server_id
http://public_dns_name:8081/artifactory
admin/admin123 as credentials
Click on Test connection to verify everything is right.
You should get the message like below:
Found Artifactory 7.4.1

Apply...Save

3. Once you installed the above plug-in, click on existing Freestyle job configuration.
4. Go under Build environment
Select Maven 3 - Artifactory integration check box

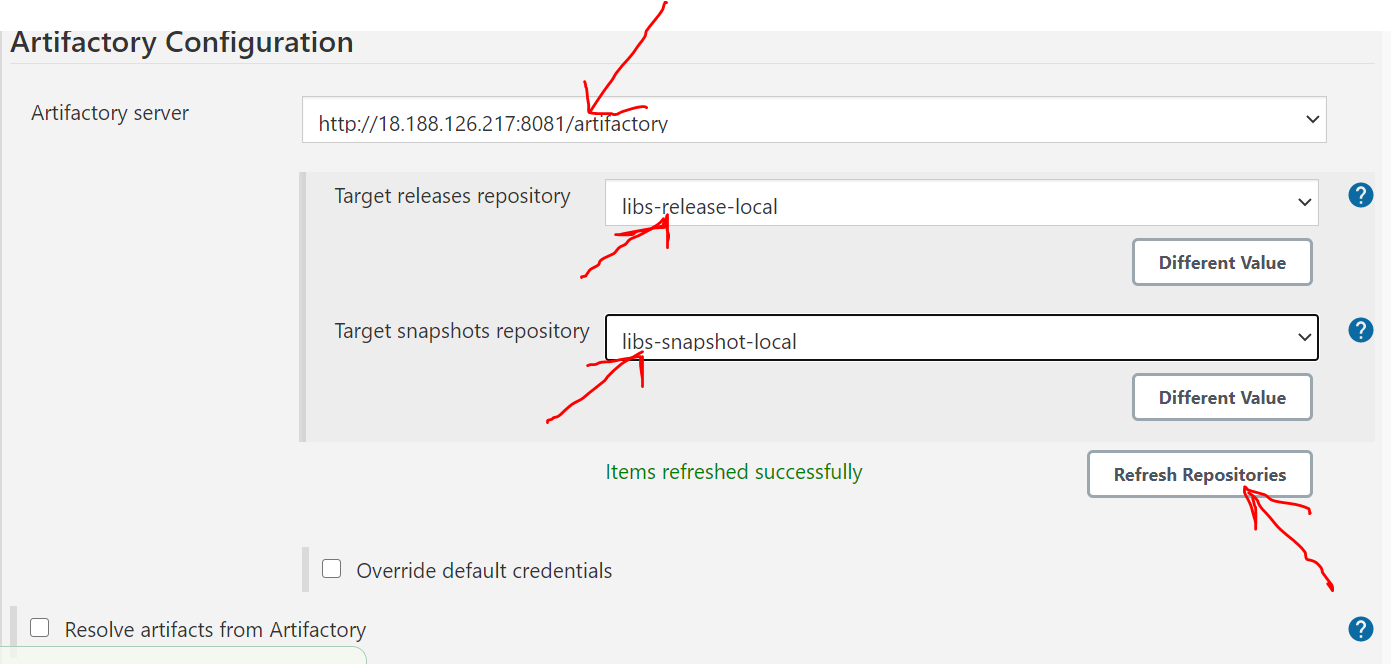

and click on refresh Repositories and choose repos as mentioned below:

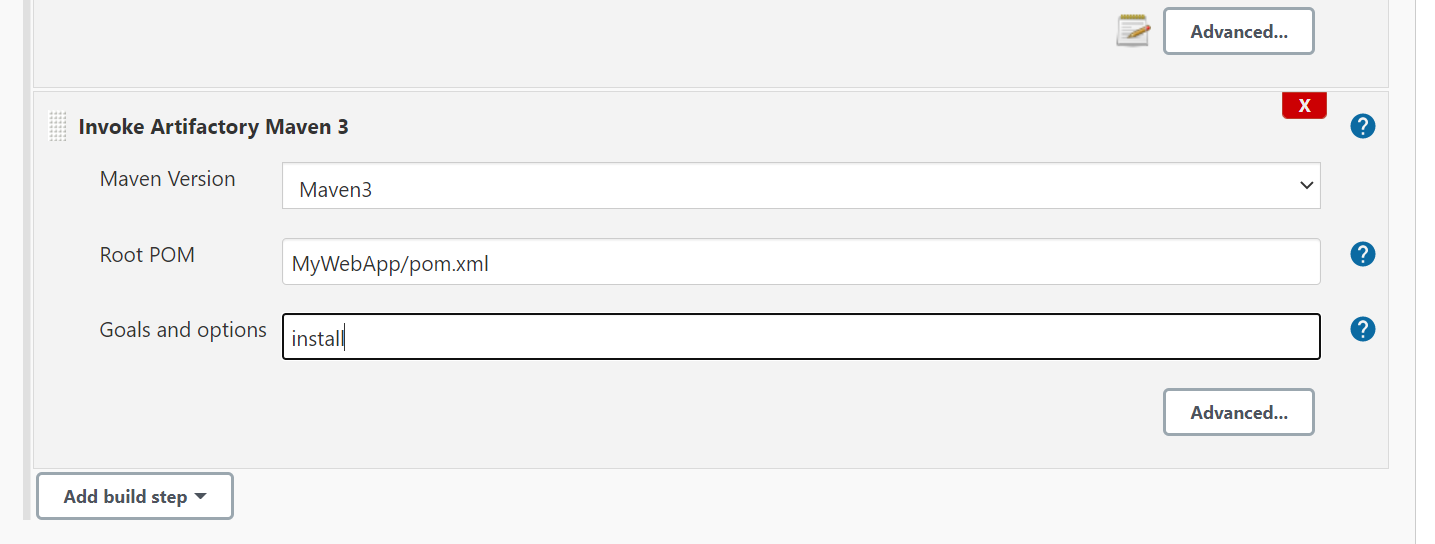

 5.Click on Add Build step and choose Invoke Artifactory Maven 3

6. Enter value as below, MyWebApp/pom.xml as root POM
and goal as install

Apply....Save

7. Now click on Build, Jenkins should build using Maven and upload WAR file into Artifactory.

8. Login to Artifactory, Click on Artifactory --> Packages
