How to use vault In Ansible Tower to Encrypt Credentials and sensitive data



Ansible Vault is a feature of ansible that allows you to keep sensitive data such as passwords or keys in encrypted files, rather than as plaintext in playbooks or roles. These vault files can then be distributed or placed in source control

Remember of previous tutorial on How to create EC2 instance with Ansible : https://violetstreamstechnology.blogspot.com/2020/09/how-to-create-ec2-instance-using.html

If you notice we had the aws_secret_key and aws_access_key placed as extra variables in Ansible Tower

This is not the best practice. Best practice is to encrypt the access_key and secret_key using Ansible vault to hide this sensitive data.

Lets do this to make our project comply with best practices:

Step 1:

Create a vault credential

Create the “Vault AWX” vault credential.

Left Menu (Credentials) > click [+] > Fill the form > click [SAVE]

Give name as  access_key: Any name will work

VAULT_PASSWORD:Give it any password you desire: For this tutorial you can use:admin123

Step 2: Encrypt the access_key and secret_key strings

step 2.1 :Log into the Ansible Tower machine

step 2.2: Use the below command:

ansible-vault encrypt_string "AKIAXR5FQWYQMB" --name "access_key"

Replace Highlighted green above with your access_key

You will be prompted for password. use admin123

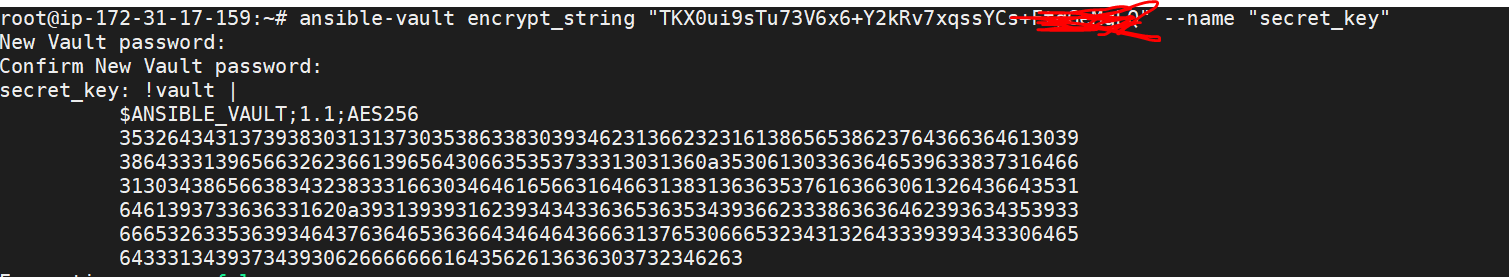

You should get result like below:

Copy the encrypted output and save in a notepad(see eg below, copy text in green)

access_key: !vault |

          $ANSIBLE_VAULT;1.1;AES256

          32666533393238663538663035343932386637386562383830363963643163356537646161316565

          6631303132633362663138313334653531306230333866310a373866356135623732613765643234

          31643430313236306664376633356564343639376637323832323832313036346231353964336236

          6435313139666530380a316331633837376263613637623630633033343734333839326234396131

          30303933623736393735393762353863333262313431663130643235636663663236

If you get an error like

Error reading config file (/etc/ansible/ansible.cfg): File contains no section headers.

file: <???>, line:  9

u'collections_paths = /home/ubuntu/.ansible/collections/ansible_collections\n'

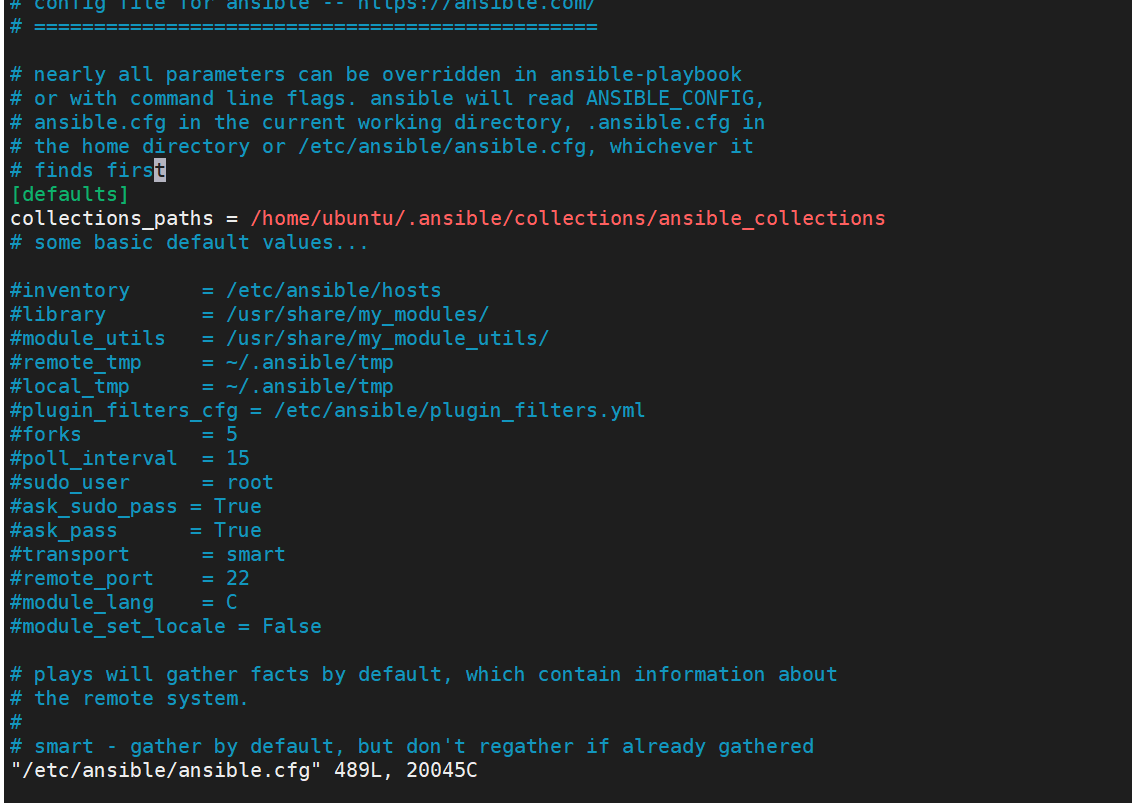

open /etc/ansible/ansible.cfg  with vi editor and insert

collections_paths = /home/ubuntu/.ansible/collections/ansible_collections  below [Default] header

$ sudo vi /etc/ansible/ansible.cfg

Then try again

Step 3: Repeat the same process for secret_key: we will use same password:admin123

Step 4: Go to your Playbook from previous exercise, Extra Variables And Paste the encrypted variable

---

- hosts: "{{ host }}"

gather_facts: true

vars:

access_key: YOUR_ACCESSKEY

secret_key: YOUR_SECRETKEY

tasks:

- name: Provision instance

ec2:

aws_access_key: "{{ access_key}}"

aws_secret_key: "{{ secret_key }}"

key_name: "{{ pem_key }}"

instance_type: t2.micro

image: ami-03657b56516ab7912

wait: yes

count: 1

region: us-east-2

Replace your accesskeys and secret keys variables with the encrypted string u copied from vault

New playbook should look like below:

---

- hosts: "{{ host }}"

gather_facts: true

vars:

access_key: !vault |

$ANSIBLE_VAULT;1.1;AES256

34376266633337386531356334323464633063633238356564623535653733346531663638393833

3439633230316565363365326436313063363865396565640a306136623863383365613231396166

64303062633561306338346364633132656435396166623361666534353730616365383134663532

3934363563613764310a313661643034666530663235316438336266663833323933343562306337

64343738633030346537386363653464616166343832616561336231313763616266

secret_key: !vault |

$ANSIBLE_VAULT;1.1;AES256

37333631633938653231633238353434373063663865666434343266383636346336343936643336

6338316330316461336365373165313163363432333630360a343334316665643336333762363665

62383035383534386238376363373339666531613262376239393466653234376330326138633239

6361646661323037640a306530663331616339343062333164366666343263383332333962643936

31316338653139633837303563396463313461343232396166346664376230316565376330356166

3436366138363430653838313064653563653731626539306664

tasks:

- name: Provision instance

ec2:

aws_access_key: "{{ access_key}}"

aws_secret_key: "{{ secret_key }}"

key_name: "{{ pem_key }}"

instance_type: t2.micro

image: ami-03657b56516ab7912

wait: yes

count: 1

region: us-east-2

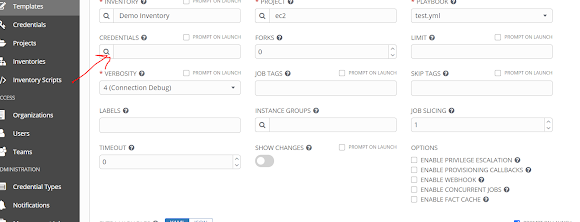

Step 5: In Templates go to credentials Section

Select your Vault credentials for access_key

Save and run your template. The playbook will use the new encrypted variable
